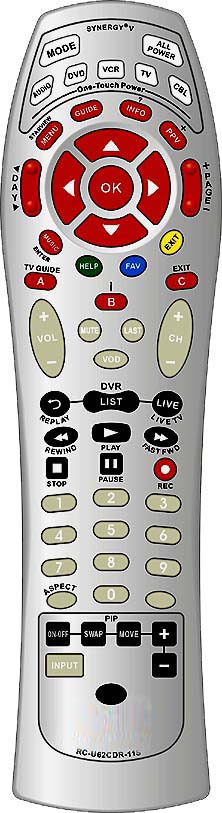

(Click on image to enlarge, or FRAME THIS REMOTE to the left)

Copyright/Trademark info

• CABLE - Cable converters
• TV - Televisions
• VCR - VCRs
• DVD-  DVD Players
• AUDIO - CD Players, Receivers, etc.

Some of the special features on the Synergy® V (Model RC-U62CDR) universal remote control are:

1. Point and Press ^® Programming
   Lets you program your TV, VIDEO, DVD, and AUDIO devices without using codes, For more information, refer to these two sections:
   1. Point and Press ^® Programming
   2. Helpful Tips and Troubleshooting.

2. [ALL POWER] SmartKey^®
   Turns your converter and TV on/off with just one button press. Can also be programmed to turn off/on other electronic devices, or automatically set to correct your correct TV output channel.
   1. Your Remote's [ALL POWER] SmartKey®

3. Mode Lock^®
   Your Model Synergy^® V (Model RC-U62CDR) remote comes "locked" in it's CABLE operating mode. To operate more functions on your TV, VCR, DVD, or AUDIO devices, see:
   1. Mode Lock^®

4. [MODE]  Button
   [MODE]  button operates only when Mode Lock™ feature is unlocked. When [MODE]  is pressed, one of the power buttons will light up indicating the current device that is being operated. While the current mode power button is illuminated, press a non-illuminated power button to operate a different device.

5. [VCR/DVD/VOD] Button
   "Toggles" the VCR buttons between "Video On Demand" (VOD), VCR, or DVD functions.

6. Memory Guard^®
   Permanent programming memory eliminates reprogramming after battery changes.

7. Time Out
   Shuts remote off if any button is pressed for over 30 seconds. This extends battery life   in the event the remote becomes lodged under or between heavy objects.

8. General Reset^®
   Lets you reset your remote to it's original default settings. For more information, see:
   1. General Reset®

When the batteries become too weak to operate the remote control properly, the mode keys will become dim or not illuminate at all during use. When this happens, install 2 new "AA" size batteries.

Your remote control has Memory Guard^®, which eliminates reprogramming after battery changes.

To program (setup) the remote to operate your CABLE converter...

* WARNING! If you have an HDTV, do not attempt this unless you are sure that your TV is NOT plugged into outlet in the back of the converter.

1. Turn on your CABLE converter.

2. Press [OK], then [MUTE] together - hold both buttons down until the mode (power) buttons start blinking in sequence:

                      Move mouse pointer over image for animation

3. From the Cable Setup Code list below, locate and enter the 3-digit code for your brand and model. Keep enetering the 3-digital codes until the converter turns off (*NOTE- See above)
   Cable Setup Codes
   Choose Cable Converter manufacturer Motorola = 002, 001, 003 General Instrument = 002, 001, 003 UEC (Chicago Open Platform) = 002 QNS (Chicago Open Platform) = 002 Scientific Atlanta = 004, 010, 011, 012, 005, 006 Pace = 004, 010 Pioneer = 004, 007 Tocom = 008 Zenith = 009, 013
4. Press [MUTE]. If your CABLE converter turns back on, press [OK] to lock in the code. The mode (power) buttons will blink 3 times and go out.
5. If your CABLE converter does not turn back on, repeat steps 3 and 4 until you can turn your CABLE converter off and on.

Write your CABLE brand & setup code down for future reference.

To program (setup) the remote to operate your TV...

1. Turn on your TV.
2. Press [OK], then [MUTE] together - hold both buttons down until the mode (power) buttons start blinking in sequence:

                      Move mouse pointer over image for animation
3. From the TV Setup Code list below, locate and enter the 3-digit code for your brand. If multiple codes are listed, you may have to enter several 3-digit codes until your TV turns off.
   TV Setup Codes
   Choose your TV manufacturer (to find quick, type the first letter) Admiral = 026, 054, 211 Adventura = 047 Aiwa = 214 Akai = 053 Amark = 023, 215 Amastrad = 157 Anam = 217, 218, 219, 220, 221, 222, 223 AOC = 053 Apex = 030, 038, 427 Audiovox = 220 Belcor = 073 Bell & Howell = 211, 213 Broksonic = 165, 167 Brokwood = 073 Candle = 068, 091 Centurion = 095, 107, 108 Citizen = 068, 091, 211, 233, 213 Concerto = 073, 095 Contec = 147 Coronado = 023 Craig = 223 Crown = 023 Curtis Mathes = 016, 054, 107, 108, 211, 213 Daewoo = 051, 068, 073, 095, 158, 159, 189, 191, 194, 196, 197, 198, 200, 202, 204, 205, 206, 207, 209 Daytron = 073, 095, 107, 108 Dumont = 073 Electro Home = 073, 095 Elektra = 353 Emerson = 016, 023, 053, 064, 103, 139, 158, 159, 164, 165, 166, 167, 168, 169, 392, 400, 401, 402, 408, 415 Envision = 073, 095 Fisher = 355, 356 Funai = 047, 048, 157, 168, 211 Gateway = 426 GE = 015, 018, 042, 044, 049, 054, 055, 068, 073, 090, 092, 095, 101, 102, 103, 389, 390, 396, 403, 406, 407 Gibralta = 023, 048, 053, 068, 073, 090, 095, 107, 108, 233, 360 Goldstar (LG) = 023, 053, 068, 073, 090, 107, 108, 233, 360, 361 Go Video = 443 Grundig = 233 Hall Mark = 073, 095 Hitachi = 023, 068, 095, 096, 097, 098, 099, 100 Inkel = 364 JC Penny = 039, 053, 068, 073, 092, 095, 102, 355 JVC = 104, 105, 106, 396, 397, 410 Jensen = 062 Kawasho = 073, 095 KMC = 023 KTV = 023, 053, 233, 366 Kurazai = 211, 213 LG (Goldstar) = 023, 053, 068, 073, 090, 107, 108, 233, 360, 361 Lodgenet = 211, 213 Logik = 211, 213 Luxman = 068, 073, 095 LXI = 024, 026, 157 Magnavox (Philips) = 023, 068, 071, 072, 073, 089, 090, 091, 093, 134, 385, 387, 397, 404, 072, 092, 094 Majestic = 211, 213 Marantz = 053, 107, 108, 109 Megatron = 215 Memorex = 090, 211, 213, 355, 388, 405 MGA/Mitsubishi = 053, 068, 073, 090, 095, 107, 109, 110, 216, 384, 394, 395, 398, 399, 417, 108 Montgomery Ward = 022, 023, 026, 053, 071, 072, 108, 211, 213 NEC = 028, 068, 090, 108, 200 Orion = 019, 159, 160, 161, 162, 163, 382 Olevia = 042, 052, 053, 054, 055, 069, 070, 416, 068 Panasonic = 042, 043, 044, 045, 046, 429 Philco = 023, 053, 068, 071, 072, 091 Philips (Magnavox) = 023, 068, 071, 072, 073, 089, 090, 091, 093, 134, 385, 387, 397, 404, 072, 092, 094 Pilot = 073, 094, 233 Pioneer = 111, 144, 383 Portland = 023, 068 Proscan = 055, 070 Proton = 090, 371, 372 Pulsar = 073 Quasar = 044 Radio Shack = 073 RCA = 042, 052, 053, 054, 055, 069, 070, 416, 068 Realistic = 022, 166, 168 Sampo = 090, 108 Samsung = 015, 016, 017, 023, 031, 090, 107, 108, 134, 147, 151, 153, 386, 411 Sanyo = 353, 355, 356, 376, 377 Scott = 090, 108, 168 Sears = 023, 031, 038, 039, 068, 353, 355, 356 Sharp = 016, 022, 023, 024, 025, 026, 027, 028, 029, 393, 395, 409 Signature 2000 = 023, 026, 108, 211, 213 Sony = 014, 020, 021, 178 Soundesign = 091 Squareview = 157 Supre-Macy = 380 Sylvania = 068, 071, 072, 090, 091, 092, 093, 107, 108, 157, 158, 419 Symphonic = 047, 157, 419 Tatung = 044 Techwood = 068 Teknika = 023, 068, 072, 091, 168, 213 Telerent = 023, 213 Tera = 381 Tevion = 065, 414 TMK = 068, 090 Toshiba = 030, 031, 038, 039 Totevision = 233 Universal = 068, 102 Vidtech = 068 Viewsonic = 428 Vizio = 023, 053, 068, 073, 090, 107, 108, 233, 360, 361 Wards = 068, 090 White Westinghouse = 211, 408, 014, 020, 021, 178 XR-1000 = 213 Yamaha = 068 York = 090, 108 Zenith = 047, 048, 049, 050, 051, 391, 405, 406, 434
   IF you cannot find your code, you can use Point and Press ^® Programming - CLICK HERE

4. Press [MUTE]. If your TV turns back on, press [OK] to lock in the code. The mode (power) buttons will blink 3 times and go out.
   • If your TV does not turn back on, repeat steps 3 and 4 until you can turn your TV off and on.

5. Try the [VOL UP], [VOL DOWN] and [MUTE] buttons to make sure the proper code for this model was locked in.
   • If [VOL UP], [VOL DOWN] and/or [MUTE] do not work, repeat steps 1-4 using a different setup code.

Write your TV brand & setup code for future reference.

1. Turn on your VCR. Put in a VCR cassette and play it on your screen.
2. Press [OK], then [MUTE] together - hold both buttons down until the mode (power) buttons start blinking in sequence:

                      Move mouse pointer over image for animation
3. From the VCR Setup Code list below, locate and enter the 3-digit code for your brand. If multiple codes are listed, you may have to enter several 3-digit codes until your VCR turns off.
   VCR Setup Codes
   Choose your VCR manufacturer (to find quick, type the first letter) Admiral = 066, 075 Aiwa = 132 Akai = 269, 275, 336, 351, 352, 354 Audio Dynamics = 243, 291 Bell & Howell = 357 Broksonic = 333, 337, 358, 359 Canon = 086, 362 Citizen = 033, 172, 247, 331 Colortyme = 291 Craig = 172, 363 Curtis Mathes = 086, 112, 247, 291 Daewoo = 033, 343, 344, 345, 346, 347 Daytron = 345, 365 DBX = 243, 291 Dynatech = 132 Emerson = 033, 086, 132, 326, 327, 331, 332, 333, 334, 335, 336, 337, 338, 339, 340, 341, 342 Fisher = 035, 081, 357, 363 Funai = 132 GE = 086, 172, 174 Go Video = 348, 349, 350 Goldstar (LG) = 247, 331 Harmon/Kardon = 291 Hitachi = 078, 132 Instant Replay = 086 JC Penney = 078, 086, 172, 238, 291 JCL = 086 JVC = 120, 128, 243, 247, 250, 253 Kenwood = 120, 132, 238, 243, 247 LG (Goldstar) = 247, 331 Llyod = 132 Logik = 367 LXI = 132, 331 Magnavox (Philips) = 086, 132, 183, 172 Marantz = 086, 172, 183, 238, 247, 291 Marta = 331 Matsui = 368 Memorex = 132, 238, 331, 363, 369, 370 Mitsubishi = 255, 258 MTC = 132, 172 Montgomery Ward = 066, 170, 173, 373 Multitech = 132, 172, 367 NEC = 120, 238, 243, 291, 374, 375 Orion = 322, 326, 327, 328, 329, 330 Panasonic = 112, 117, 430, 086 Pentax = 078 Philco = 086, 132, 183 Philips (Magnavox) = 086, 132, 183, 172 Pioneer = 078, 120, 263 Portland = 345 Proscan = 170, 174 Quartz = 238, 378 Quasar = 112 RCA = 078, 132, 141, 170, 172, 173, 174 Realistic = 066, 132, 238, 363 Samsung = 269, 271, 275, 276, 278 Sansui = 120, 367, 379 Sanyo = 238, 346, 357, 363 Scott = 033, 332, 367 Sears = 035, 078, 238, 331, 363 Sharp = 066, 075 Shintom = 367 Singnature 2000 = 066, 170, 173, 373 Sony = 056, 058, 060 Soundesign = 132 Sylvania = 086, 132, 141, 183, 184, 322, 324, 420 Symphonic = 132 Tandy = 132, 238 Tashiko = 331 Tatung = 243 Teac = 132, 243 Technics = 086 Teknika = 132, 331, 359 Thomas = 132 TMK = 338 Toshiba = 033, 035, 078, 081 Totevision = 172, 331 Unitech = 172 Vector Research = 291 Video Concepts = 132, 291 Wards = 066, 132, 172, 247, 331 XR-1000 = 367 Yamaha = 132, 243, 291 Zenith = 058, 120, 122, 128, 132, 435
   IF you cannot find your code, you can use   Point and Press ® Programming - CLICK HERE

4. Press [MUTE]. If your VCR turns back on, press [OK] to lock in the code. The mode (power) buttons will blink 3 times and go out.
   • If your VCR does not turn back on, repeat steps 1-5 until you can turn your TV off and on.

5. Put a tape in and try the [PLAY], [REWIND] and [FFWD] buttons to make sure the proper code for this model was locked in.
   • If [PLAY], [REWIND] and/or [FFWD] do not work, repeat steps 1-6 using a different setup code.

Write your VCR brand & setup code for future reference.

• Turn on your VCR. Put in a VCR cassette and play it on your screen.
• Press [OK], then [MUTE] together - hold both buttons down until the mode (power) buttons start blinking in sequence:

                     Move mouse pointer over image for animation
• From the VCR Setup Code list below, locate and enter the 3-digit code for your brand. If multiple codes are listed, you may have to enter several 3-digit codes until your VCR turns off.
  VCR Setup Codes
  Choose your VCR manufacturer (to find quick, type the first letter) Admiral = 066, 075 Aiwa = 132 Akai = 269, 275, 336, 351, 352, 354 Audio Dynamics = 243, 291 Bell & Howell = 357 Broksonic = 333, 337, 358, 359 Canon = 086, 362 Citizen = 033, 172, 247, 331 Colortyme = 291 Craig = 172, 363 Curtis Mathes = 086, 112, 247, 291 Daewoo = 033, 343, 344, 345, 346, 347 Daytron = 345, 365 DBX = 243, 291 Dynatech = 132 Emerson = 033, 086, 132, 326, 327, 331, 332, 333, 334, 335, 336, 337, 338, 339, 340, 341, 342 Fisher = 035, 081, 357, 363 Funai = 132 GE = 086, 172, 174 Go Video = 348, 349, 350 Goldstar (LG) = 247, 331 Harmon/Kardon = 291 Hitachi = 078, 132 Instant Replay = 086 JC Penney = 078, 086, 172, 238, 291 JCL = 086 JVC = 120, 128, 243, 247, 250, 253 Kenwood = 120, 132, 238, 243, 247 LG (Goldstar) = 247, 331 Llyod = 132 Logik = 367 LXI = 132, 331 Magnavox (Philips) = 086, 132, 183, 172 Marantz = 086, 172, 183, 238, 247, 291 Marta = 331 Matsui = 368 Memorex = 132, 238, 331, 363, 369, 370 Mitsubishi = 255, 258 MTC = 132, 172 Montgomery Ward = 066, 170, 173, 373 Multitech = 132, 172, 367 NEC = 120, 238, 243, 291, 374, 375 Orion = 322, 326, 327, 328, 329, 330 Panasonic = 112, 117, 430, 086 Pentax = 078 Philco = 086, 132, 183 Philips (Magnavox) = 086, 132, 183, 172 Pioneer = 078, 120, 263 Portland = 345 Proscan = 170, 174 Quartz = 238, 378 Quasar = 112 RCA = 078, 132, 141, 170, 172, 173, 174 Realistic = 066, 132, 238, 363 Samsung = 269, 271, 275, 276, 278 Sansui = 120, 367, 379 Sanyo = 238, 346, 357, 363 Scott = 033, 332, 367 Sears = 035, 078, 238, 331, 363 Sharp = 066, 075 Shintom = 367 Singnature 2000 = 066, 170, 173, 373 Sony = 056, 058, 060 Soundesign = 132 Sylvania = 086, 132, 141, 183, 184, 322, 324, 420 Symphonic = 132 Tandy = 132, 238 Tashiko = 331 Tatung = 243 Teac = 132, 243 Technics = 086 Teknika = 132, 331, 359 Thomas = 132 TMK = 338 Toshiba = 033, 035, 078, 081 Totevision = 172, 331 Unitech = 172 Vector Research = 291 Video Concepts = 132, 291 Wards = 066, 132, 172, 247, 331 XR-1000 = 367 Yamaha = 132, 243, 291 Zenith = 058, 120, 122, 128, 132, 435

  The codes above should work. If they do not, try the TV setup codes for this brand:
  TV Setup Codes
  Choose your TV manufacturer (to find quick, type the first letter) Admiral = 026, 054, 211 Adventura = 047 Aiwa = 214 Akai = 053 Amark = 023, 215 Amastrad = 157 Anam = 217, 218, 219, 220, 221, 222, 223 AOC = 053 Apex = 030, 038, 427 Audiovox = 220 Belcor = 073 Bell & Howell = 211, 213 Broksonic = 165, 167 Brokwood = 073 Candle = 068, 091 Centurion = 095, 107, 108 Citizen = 068, 091, 211, 233, 213 Concerto = 073, 095 Contec = 147 Coronado = 023 Craig = 223 Crown = 023 Curtis Mathes = 016, 054, 107, 108, 211, 213 Daewoo = 051, 068, 073, 095, 158, 159, 189, 191, 194, 196, 197, 198, 200, 202, 204, 205, 206, 207, 209 Daytron = 073, 095, 107, 108 Dumont = 073 Electro Home = 073, 095 Elektra = 353 Emerson = 016, 023, 053, 064, 103, 139, 158, 159, 164, 165, 166, 167, 168, 169, 392, 400, 401, 402, 408, 415 Envision = 073, 095 Fisher = 355, 356 Funai = 047, 048, 157, 168, 211 Gateway = 426 GE = 015, 018, 042, 044, 049, 054, 055, 068, 073, 090, 092, 095, 101, 102, 103, 389, 390, 396, 403, 406, 407 Gibralta = 023, 048, 053, 068, 073, 090, 095, 107, 108, 233, 360 Goldstar (LG) = 023, 053, 068, 073, 090, 107, 108, 233, 360, 361 Go Video = 443 Grundig = 233 Hall Mark = 073, 095 Hitachi = 023, 068, 095, 096, 097, 098, 099, 100 Inkel = 364 JC Penny = 039, 053, 068, 073, 092, 095, 102, 355 JVC = 104, 105, 106, 396, 397, 410 Jensen = 062 Kawasho = 073, 095 KMC = 023 KTV = 023, 053, 233, 366 Kurazai = 211, 213 LG (Goldstar) = 023, 053, 068, 073, 090, 107, 108, 233, 360, 361 Lodgenet = 211, 213 Logik = 211, 213 Luxman = 068, 073, 095 LXI = 024, 026, 157 Magnavox (Philips) = 023, 068, 071, 072, 073, 089, 090, 091, 093, 134, 385, 387, 397, 404, 072, 092, 094 Majestic = 211, 213 Marantz = 053, 107, 108, 109 Megatron = 215 Memorex = 090, 211, 213, 355, 388, 405 MGA/Mitsubishi = 053, 068, 073, 090, 095, 107, 109, 110, 216, 384, 394, 395, 398, 399, 417, 108 Montgomery Ward = 022, 023, 026, 053, 071, 072, 108, 211, 213 NEC = 028, 068, 090, 108, 200 Orion = 019, 159, 160, 161, 162, 163, 382 Olevia = 042, 052, 053, 054, 055, 069, 070, 416, 068 Panasonic = 042, 043, 044, 045, 046, 429 Philco = 023, 053, 068, 071, 072, 091 Philips (Magnavox) = 023, 068, 071, 072, 073, 089, 090, 091, 093, 134, 385, 387, 397, 404, 072, 092, 094 Pilot = 073, 094, 233 Pioneer = 111, 144, 383 Portland = 023, 068 Proscan = 055, 070 Proton = 090, 371, 372 Pulsar = 073 Quasar = 044 Radio Shack = 073 RCA = 042, 052, 053, 054, 055, 069, 070, 416, 068 Realistic = 022, 166, 168 Sampo = 090, 108 Samsung = 015, 016, 017, 023, 031, 090, 107, 108, 134, 147, 151, 153, 386, 411 Sanyo = 353, 355, 356, 376, 377 Scott = 090, 108, 168 Sears = 023, 031, 038, 039, 068, 353, 355, 356 Sharp = 016, 022, 023, 024, 025, 026, 027, 028, 029, 393, 395, 409 Signature 2000 = 023, 026, 108, 211, 213 Sony = 014, 020, 021, 178 Soundesign = 091 Squareview = 157 Supre-Macy = 380 Sylvania = 068, 071, 072, 090, 091, 092, 093, 107, 108, 157, 158, 419 Symphonic = 047, 157, 419 Tatung = 044 Techwood = 068 Teknika = 023, 068, 072, 091, 168, 213 Telerent = 023, 213 Tera = 381 Tevion = 065, 414 TMK = 068, 090 Toshiba = 030, 031, 038, 039 Totevision = 233 Universal = 068, 102 Vidtech = 068 Viewsonic = 428 Vizio = 023, 053, 068, 073, 090, 107, 108, 233, 360, 361 Wards = 068, 090 White Westinghouse = 211, 408, 014, 020, 021, 178 XR-1000 = 213 Yamaha = 068 York = 090, 108 Zenith = 047, 048, 049, 050, 051, 391, 405, 406, 434

  If you cannot find your code, you can use  Point and Press ^® Programming - CLICK HERE

• Press [MUTE]. If your TV turns back on, press [OK] to lock in the code. The mode (power) buttons will blink 3 times and go out.
• If your TV does not turn back on, repeat steps 3 and 4 until you can turn your TV off and on.

  Write your TV/VCR brand & setup code for future reference.

Step 2:

Try the PLAY(), REWIND(), FFWD(), etc. buttons to make sure that you have the correct code for your unit. If you cannot operate all of the basic functions of the TV/VCR Combo, repeat from step 1.

1. Turn on your DVD Player.
2. Press [OK], then [MUTE] together - hold both buttons down until the mode (power) buttons start blinking in sequence:

                      Move mouse pointer over image for animation
3. From the DVD Player Setup Code lists below, locate and enter the 3-digit code for your brand. If multiple codes are listed, you may have to enter several 3-digit codes until your DVD Player turns off.
   DVD Player Code Lists
   Choose your DVD manufacturer (to find quick, type the first letter) Apex Digital = 193, 227 B144 = 146 Denon = 201, 203 DVD-Video = 199 ECA = 156 GE = 150, 152, 156, 175 Goldstar (LG) = 129, 133, 135, 179, 260 Gradiente = 212, 234 Harmon/Kardon = 256, 259 Hitachi = 149 JVC = 177, 179 Kenwood = 228 LG (Goldstar) = 129, 133, 135, 179, 260 Magnavox (Philips) = 138, 143, 146 Marantz = 270 Mitsubishi = 181, 185 NAD = 246 Onkyo = 085, 244 Panasonic = 115, 118, 121, 124, 431 Pioneer = 125, 187, 188 Proceed = 236 RCA = 156 Samsung = 192, 224, 225 Sharp = 034, 076, 077, 079 Sony = 040, 059, 061, 436 Sylvania = 421 Thomson = 156, 237 Toshiba = 082, 085, 087, 113 Yamaha = 121, 124, 210 Zenith = 129, 133, 135
   If you cannot find your code, you can use  Point and Press ^® Programming - CLICK HERE

4. Press [MUTE]. If your TV turns back on, press [OK] to lock in the code. The mode (power) buttons will blink 3 times and go out.
5. If your DVD Player does not turn back on, repeat steps 3 and 4 until you can turn your DVD Player off and on.

Write your DVD Player brand & setup code for future reference.

• Turn on your DVD. Put in a DVD and play it on your screen.
• Press [OK], then [MUTE] together - hold both buttons down until the mode (power) buttons start blinking in sequence:

                     Move mouse pointer over image for animation
• From the DVD Player Setup Code lists below, locate and enter the 3-digit code for your brand. If multiple codes are listed, you may have to enter several 3-digit codes until your DVD Player turns off.
  DVD Player Code Lists
  Choose your DVD manufacturer (to find quick, type the first letter) Apex Digital = 193, 227 B144 = 146 Denon = 201, 203 DVD-Video = 199 ECA = 156 GE = 150, 152, 156, 175 Goldstar (LG) = 129, 133, 135, 179, 260 Gradiente = 212, 234 Harmon/Kardon = 256, 259 Hitachi = 149 JVC = 177, 179 Kenwood = 228 LG (Goldstar) = 129, 133, 135, 179, 260 Magnavox (Philips) = 138, 143, 146 Marantz = 270 Mitsubishi = 181, 185 NAD = 246 Onkyo = 085, 244 Panasonic = 115, 118, 121, 124, 431 Pioneer = 125, 187, 188 Proceed = 236 RCA = 156 Samsung = 192, 224, 225 Sharp = 034, 076, 077, 079 Sony = 040, 059, 061, 436 Sylvania = 421 Thomson = 156, 237 Toshiba = 082, 085, 087, 113 Yamaha = 121, 124, 210 Zenith = 129, 133, 135
  The codes above should work. If they do not, try the TV setup codes for this brand:
  TV Setup Codes
  Choose your TV manufacturer (to find quick, type the first letter) Admiral = 026, 054, 211 Adventura = 047 Aiwa = 214 Akai = 053 Amark = 023, 215 Amastrad = 157 Anam = 217, 218, 219, 220, 221, 222, 223 AOC = 053 Apex = 030, 038, 427 Audiovox = 220 Belcor = 073 Bell & Howell = 211, 213 Broksonic = 165, 167 Brokwood = 073 Candle = 068, 091 Centurion = 095, 107, 108 Citizen = 068, 091, 211, 233, 213 Concerto = 073, 095 Contec = 147 Coronado = 023 Craig = 223 Crown = 023 Curtis Mathes = 016, 054, 107, 108, 211, 213 Daewoo = 051, 068, 073, 095, 158, 159, 189, 191, 194, 196, 197, 198, 200, 202, 204, 205, 206, 207, 209 Daytron = 073, 095, 107, 108 Dumont = 073 Electro Home = 073, 095 Elektra = 353 Emerson = 016, 023, 053, 064, 103, 139, 158, 159, 164, 165, 166, 167, 168, 169, 392, 400, 401, 402, 408, 415 Envision = 073, 095 Fisher = 355, 356 Funai = 047, 048, 157, 168, 211 Gateway = 426 GE = 015, 018, 042, 044, 049, 054, 055, 068, 073, 090, 092, 095, 101, 102, 103, 389, 390, 396, 403, 406, 407 Gibralta = 023, 048, 053, 068, 073, 090, 095, 107, 108, 233, 360 Goldstar (LG) = 023, 053, 068, 073, 090, 107, 108, 233, 360, 361 Go Video = 443 Grundig = 233 Hall Mark = 073, 095 Hitachi = 023, 068, 095, 096, 097, 098, 099, 100 Inkel = 364 JC Penny = 039, 053, 068, 073, 092, 095, 102, 355 JVC = 104, 105, 106, 396, 397, 410 Jensen = 062 Kawasho = 073, 095 KMC = 023 KTV = 023, 053, 233, 366 Kurazai = 211, 213 LG (Goldstar) = 023, 053, 068, 073, 090, 107, 108, 233, 360, 361 Lodgenet = 211, 213 Logik = 211, 213 Luxman = 068, 073, 095 LXI = 024, 026, 157 Magnavox (Philips) = 023, 068, 071, 072, 073, 089, 090, 091, 093, 134, 385, 387, 397, 404, 072, 092, 094 Majestic = 211, 213 Marantz = 053, 107, 108, 109 Megatron = 215 Memorex = 090, 211, 213, 355, 388, 405 MGA/Mitsubishi = 053, 068, 073, 090, 095, 107, 109, 110, 216, 384, 394, 395, 398, 399, 417, 108 Montgomery Ward = 022, 023, 026, 053, 071, 072, 108, 211, 213 NEC = 028, 068, 090, 108, 200 Orion = 019, 159, 160, 161, 162, 163, 382 Olevia = 042, 052, 053, 054, 055, 069, 070, 416, 068 Panasonic = 042, 043, 044, 045, 046, 429 Philco = 023, 053, 068, 071, 072, 091 Philips (Magnavox) = 023, 068, 071, 072, 073, 089, 090, 091, 093, 134, 385, 387, 397, 404, 072, 092, 094 Pilot = 073, 094, 233 Pioneer = 111, 144, 383 Portland = 023, 068 Proscan = 055, 070 Proton = 090, 371, 372 Pulsar = 073 Quasar = 044 Radio Shack = 073 RCA = 042, 052, 053, 054, 055, 069, 070, 416, 068 Realistic = 022, 166, 168 Sampo = 090, 108 Samsung = 015, 016, 017, 023, 031, 090, 107, 108, 134, 147, 151, 153, 386, 411 Sanyo = 353, 355, 356, 376, 377 Scott = 090, 108, 168 Sears = 023, 031, 038, 039, 068, 353, 355, 356 Sharp = 016, 022, 023, 024, 025, 026, 027, 028, 029, 393, 395, 409 Signature 2000 = 023, 026, 108, 211, 213 Sony = 014, 020, 021, 178 Soundesign = 091 Squareview = 157 Supre-Macy = 380 Sylvania = 068, 071, 072, 090, 091, 092, 093, 107, 108, 157, 158, 419 Symphonic = 047, 157, 419 Tatung = 044 Techwood = 068 Teknika = 023, 068, 072, 091, 168, 213 Telerent = 023, 213 Tera = 381 Tevion = 065, 414 TMK = 068, 090 Toshiba = 030, 031, 038, 039 Totevision = 233 Universal = 068, 102 Vidtech = 068 Viewsonic = 428 Vizio = 023, 053, 068, 073, 090, 107, 108, 233, 360, 361 Wards = 068, 090 White Westinghouse = 211, 408, 014, 020, 021, 178 XR-1000 = 213 Yamaha = 068 York = 090, 108 Zenith = 047, 048, 049, 050, 051, 391, 405, 406, 434

  IF you cannot find your code, you can use Point and Press ^® Programming - CLICK HERE

• Press [MUTE]. If your TV turns back on, press [OK] to lock in the code. The mode (power) buttons will blink 3 times and go out.
• If your DVD Player does not turn back on, repeat steps 3 and 4 until you can turn your DVD Player off and on.

Write your DVD Player brand & setup code for future reference.

Step 2:

Try the PLAY(), REWIND(), FFWD(), etc. buttons to make sure that you have the correct code for your unit. If you cannot operate all of the basic functions of the TV/VCR Combo, repeat from step 1.

1. Turn on your AUDIO Device.
2. Press [OK], then [MUTE] together - hold both buttons down until the mode (power) buttons start blinking in sequence:

                      Move mouse pointer over image for animation
3. From the  Audio Device Setup Code lists below, locate and enter the 3-digit code for your brand. If multiple codes are listed, you may have to enter several 3-digit codes until your Audio Device turns off.
   Audio Device Code Lists

   Compact Disc
   Choose your manufacturer (to find quick, type the first letter) ADC = 318 Akai = 249, 261 Aiwa = 176 Carver = 176 Crown = 154 Denon = 273 Fisher = 230, 274 Goldstar (LG) = 308 Harmon/Kardon = 315 JVC = 297 Kenwood = 131, 176, 274, 289, 299 Krol = 176 LG (Goldstar) = 308 Magnavox (Philips) = 037, 084, 119, 296, 433 Mission = 176 Mitsubishi = 245, 249 NAD = 182, 231, 290 Nakamichi = 264, 319 NEC = 235 NSM = 176 Onkyo = 300 Panasonic = 184, 266, 437 Philips (Magnavox) = 037, 084, 119, 296, 433 Pioneer = 116, 127 Quasar = 184 Radio Shack = 186, 190, 266, 279, 289 RCA = 295 Sanyo = 230, 309 SAE = 176 Scott = 186 Sharp = 288, 289 Sony = 067, 292, 293 Soundesign = 148, 242, 311, 320 STS = 318 Sylvania = 084 TEAC = 186 Technics = 184, 208, 317 Toshiba = 290 Yamaha = 280

   Receiver/Amplifier
   Choose your manufacturer (to find quick, type the first letter) Adcom = 325 Aiwa = 301 Akai = 142 Bose = 302, 440 Carver = 155, 180 Denon = 262, 307 Everquest = 136 Fisher = 063, 180 Fosgate Audionics = 305 Goldstar (LG) = 036 Harmon/Kardon = 130, 257, 305, 306 Hitachi = 240 Jensen = 140 JVC = 114, 241 Kenwood = 063, 277 LG (Goldstar) = 036 Luxman = 281 Magnavox (Philips) = 080 Marantz = 282, 283, 284, 285 NAD = 286 Onkyo = 126, 171, 304 Optimus = 142, 229, 321 Panasonic = 032, 074, 438, 441 Parasound = 323 Philips (Magnavox) = 080 Pioneer = 123, 137, 251, 298 Quasar = 032 Radio Shack = 229, 267 Realistic = 226, 268 Rotel = 310 Sansui = 283 Sanyo = 195 Scott = 272 Sharp = 294 Sherwood = 229, 267 Sony = 041, 057, 232, 287, 442 Soundesign = 083, 088, 239, 265 SSI = 313 Taekwang = 142 TEAC = 314, 316 Technics = 032 Wards = 063 Victor = 114, 241 Yamaha = 145, 254, 303 Zenith = 036, 083, 088, 239, 265
   IF you cannot find your code, you can use Point and Press ^® Programming - CLICK HERE


4. Press [MUTE]. If your Audio Device turns back on, press [OK] to lock in the code. The mode (power) buttons will blink 3 times and go out.
5. If your Audio Device does not turn back on, repeat steps 3 and 4 until you can turn your Audio Device off and on.

Write your AUDIO device brand & setup code for future reference.

The following instructions describe how to program your remote control using the [CH ] and  [CH ] buttons. (these buttons function as "power" during programming). You may also program your remote control using other buttons/functions as described in section . When using this method, there are several points to remember:

• The order in which you program your devices IS NOT important.
• While the remote is searching for the correct setup code, other devices that you are NOT currently programming may turn on/off. This is nothing to be concerned about. Simply continue pressing  [CH ] until you find the correct code for the device you are programming. Your other devices will not be affected.
• It may take several minutes for the remote control to find the proper code. During this time, the remote control will remain lit in a fast rotation pattern:


• There may be several codes that turn your electronic devices ON / OFF (or other functions). Once you lock in a code, be sure to check all available functions for that device. For example:
  • For TV try the [VOL ], [VOL],[MUTE], TV input (TV/VCR button), etc.
  • For VCR or DVD, try the PLAY(), REWIND(), FFWD(), etc.
  • For Audio, try the [VOL ], [VOL],[MUTE],etc.

Start programming:

If you have a TV operated by remote control, it is recommended that you plug it directly into a wall outlet instead of the cable converter. If the TV is plugged into the converter, try to set the converter to UNSWITCHED or ALWAYS ON. Refer to your Passport ECHO/Passport DCT guide for operation.

To program (setup) the remote to operate your TV...

1. Turn on your TV.
2. Press [OK], then [MUTE] together - hold both buttons down until the lighted mode (power) buttons start blinking in sequence:

                      Move mouse pointer over image for animation
3. Press and hold the [CH ] button until the TV turns off. Every time the mode (power) buttons light in a sequence (see animation below), the remote is trying a different code. It may take seconds or several minutes for the remote to find the proper code for your device. Please be patient, and be ready to release the  [CH ] button when the device turns off:
   Move mouse pointer over image for animation
   As soon as the TV turns off, release [CH ].

4. Press [MUTE]. If your TV turns back on, press [OK] to lock in the code. The mode (power) buttons will blink 3 times and go out.
   Or..
   If your TV does not run back on, try pressing [CH ] one step at a time until that device turns back on. Each time you press the [CH ] button, the power/mode buttons will start blinking in reverse sequence:
   Move mouse pointer over image for animation
   Once you have found the proper code, press [OK]  to lock in the code.

To program (setup) the remote to operate your VCR...

1. Turn on your VCR. Put in a Video cassette and play it on your screen.
2. Press [OK], then [MUTE] together - hold both buttons down until the lighted mode (power) buttons start blinking in sequence:

                      Move mouse pointer over image for animation
3. Press and hold the [CH ] button until the VCR turns off. Every time the mode (power) buttons light in a sequence (see animation below), the remote is trying a different code. It may take seconds or several minutes for the remote to find the proper code for your device. Please be patient, and be ready to release the  [CH ] button when the device turns off:

   Move mouse pointer over image for animation
   As soon as the TV turns off, release [CH ].

4. Press [MUTE]. If your VCR turns back on, press [OK] to lock in the code. The mode (power) buttons will blink 3 times and go out.
   Or..
   If your VCR does not run back on, try pressing [CH ] one step at a time until that device turns back on. Each time you press the [CH ] button, the mode (power) buttons will start blinking in reverse sequence:
   Move mouse pointer over image for animation
   Once you have found the proper code, press [OK]  to lock in the code.

To program (setup) the remote to operate your DVD Player...

1. Turn on your DVD Player.Put in a DVD and play it on your screen.
2. Press [OK], then [MUTE] together - hold both buttons down until the lighted mode (power) buttons start blinking in sequence:

                      Move mouse pointer over image for animation
3. Press and hold the [CH ] button until the DVD Player turns off. Every time the mode (power) buttons light in a sequence (see animation below), the remote is trying a different code. It may take seconds or several minutes for the remote to find the proper code for your device. Please be patient, and be ready to release the  [CH ] button when the device turns off:
   Move mouse pointer over image for animation
   As soon as the TV turns off, release [CH ].

4. Press [MUTE]. If your DVD Player turns back on, press [OK] to lock in the code. The mode (power) buttons will blink 3 times and go out.
   Or..
   If your DVD Player does not run back on, try pressing [CH ] one step at a time until that device turns back on. Each time you press the [CH ] button, the mode (power) buttons will start blinking in reverse sequence:
   Move mouse pointer over image for animation
   Once you have found the proper code, press [OK]  to lock in the code.

To program (setup) the remote to operate your Audio Device (Receiver, Amplifier, CD Player)...

1. Turn on your Audio Device.
2. Press [OK], then [MUTE] together - hold both buttons down until the lighted mode (power) buttons start blinking in sequence:

                      Move mouse pointer over image for animation
3. Press and hold the [CH ] button until the Audio Device turns off. Every time the mode (power) buttons light in a sequence (see animation below), the remote is trying a different code. It may take seconds or several minutes for the remote to find the proper code for your device. Please be patient, and be ready to release the  [CH ] button when the device turns off:
   Move mouse pointer over image for animation
   As soon as the Audio Device turns off, release [CH ].

4. Press [MUTE]. If your Audio Device turns back on, press [OK] to lock in the code. The mode (power) buttons will blink 3 times and go out.
   Or..
   If your Audio Device does not run back on, try pressing [CH ] one step at a time until that device turns back on. Each time you press the [CH ] button, the mode (power) buttons will start blinking in reverse sequence:
   Move mouse pointer over image for animation
   Once you have found the proper code, press [OK]  to lock in the code.

To identify the 3-digit setup code for your TV, follow these steps:

1. Press [TV], then [OK] - hold both down until the [TV] button lights up under finger.
2. Press [INFO]. The illuminated button will “blink back” the code number, with a 1-second interval between each digit of the code.
   Example: For code “105”, the remote will blink 1 time, then 10 times, then 5 times.

To identify the 3-digit setup code for your VCR, follow these steps:

1. Press [VCR], then [OK] - hold both down until the [VCR] button lights up under finger.
2. Press [INFO]. The illuminated button will “blink back” the code number, with a 1-second interval between each digit of the code.
   Example: For code “105”, the remote will blink 1 time, then 10 times, then 5 times.

To identify the 3-digit setup code for your Audio Device, follow these steps:

1. Press [AUDIO], then [OK] - hold both down until the [AUDIO] button lights up under finger.
2. Press [INFO]. The illuminated button will “blink back” the code number, with a 1-second interval between each digit of the code.
   Example: For code “105”, the remote will blink 1 time, then 10 times, then 5 times.

To identify the 3-digit setup code for your DVD Player, follow these steps:

1. Press [DVD], then [OK] - hold both down until the [DVD] button lights up under finger.
2. Press [INFO]. The illuminated button will “blink back” the code number, with a 1-second interval between each digit of the code.
   Example: For code “105”, the remote will blink 1 time, then 10 times, then 5 times.

The Synergy® V (Model RC-U62CDR) comes LOCKED in the CABLE mode. to unlock, see Mode Lock™

Pressing :	Illuminates selected electronic device being operated, in this case the [CBL] button.
Pressing :	Turns your converter and TV on/off with just one button press. Can also be programmed to turn off/on other electronic devices, or automatically set to correct your correct TV output channel. See   Your Remote's [ALL POWER] SmartKey®
Pressing :	Turns converter on / off.
Pressing :	Turns TV on / off.
Pressing :	Turns VCR on / off.
Pressing :	Turns Audio device on / off.
Pressing :	Turns DVD device on / off.
Pressing [0] - [9]:	Allows you to jump to the desired channel on the converter.
Pressing :	Displays on-screen features, options.
Pressing :	Displays on-screen listing of programs by date, time, channel.
Pressing :	Displays channel, time information. Press TWICE to browse channels
Pressing :	Direct access to PPV programming
Pressing :	Shows previous / next day in view guide.
Pressing  :	Navigates on-screen menus, program guide, PPV events and interactive services. Also controls VOD and DVR playback
Pressing :	Selects menu option, program PPV events and function options.
Pressing :	Pages up / down through menus, view guide.
Pressing	Selects Music Choice™ digital music through your converter.
Pressing :	Displays on-screen help on converters so equipped
Pressing :	When in the interactive guide, choose "Favorite channels" from the on-screen menu. Pressing the blue FAV button on a selected channel will add it to your list of favorite channels. When out of the interactive guide, pressing FAV will scroll through your list of favorite channels that you stored through the interactive guide.
Pressing :	Exits on-screen menus, view guide.
Pressing :	Utilizes specific commands within IPG
Pressing :	Utilizes specific commands within IPG
Pressing :	Utilizes specific commands within IPG
Pressing :	Increases / decreases TV  volume. See:   Programming Volume Control
Pressing :	Mutes the TV volume See:   Programming Volume Control
Pressing :	Displays last channel viewed.
Pressing :	Displays on-screen Video On Demand menu
Pressing :	Increases / decreases converter  channel.
Pressing [ ]:	DVR function- Replays last few seconds of DVR recorded program
Pressing [ ]:	DVR function- Displays on-screen list DVR recorded programs
Pressing [ ]:	DVR function- Goes back to live TV broadcast.
Pressing []:	Swaps the tuner in the Dual Tuner DVR, so that you can watch one program and record another at the same time.
Pressing  []:	All other PIP (Picture In Picture) buttons non-functional in CABLE mode
Pressing [ ]:	Non-functional in CABLE mode
Pressing [ ]:	Selects Video Source Click HERE for info
Pressing []:	Channel Memory Click HERE for info
Pressing []:	Stops – CABLE (video-on-demand/DVR), DVD, or VCR.
Pressing []:	Pauses – CABLE (video-on-demand/DVR), DVD, or VCR.
Pressing []:	Plays – CABLE (video-on-demand/DVR), DVD, or VCR.
Pressing []:	Rewinds – CABLE (video-on-demand/DVR), DVD, or VCR.
Pressing []:	Records – CABLE (DVR) or VCR.
Pressing []:]:	Fast-forwards – CABLE (video-on-demand/DVR), DVD, or VCR.
